Trek Émonda SLR 6 - 2023/2024

Trek Émonda SLR 6
  • Color: Deep Smoke
  • Color: Viper Red
  • Color: Dark Prismatic/Trek Black
  • Color: Azure
  • Color: Metallic Red Smoke to Red Carbon Smoke
$7,699.99
Wheel Size:
700c
Please select options
Please call for Availability

Details

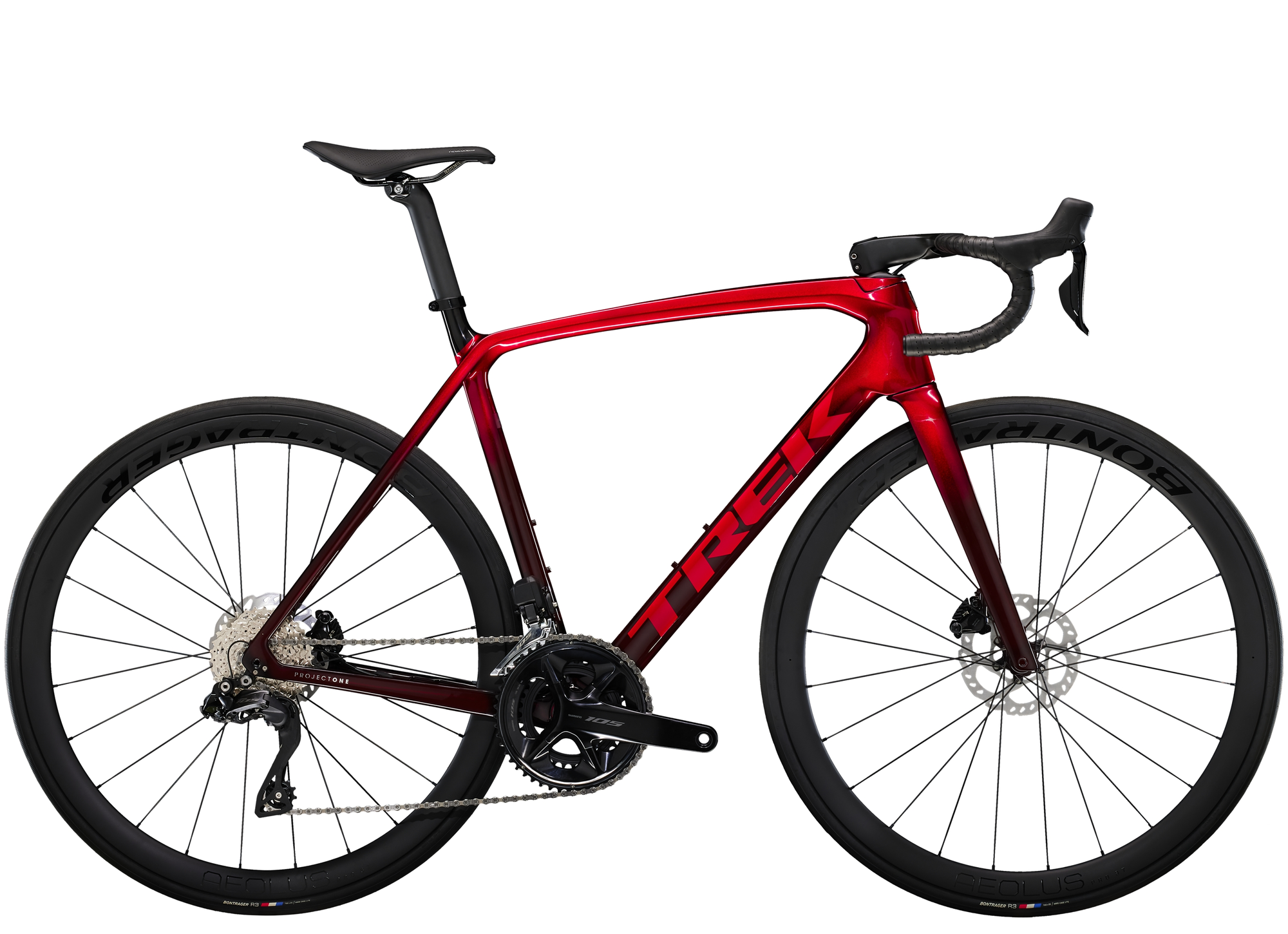

Émonda SLR 6 is an ultralight, aerodynamic carbon road bike that's designed and built to soar up climbs with serious speed. You get the legendary ride quality of our lightest platform, plus more speed, thanks to aero tubes wrought from a superlight OCLV layup. You also get the precision shifting of a wireless electronic Shimano 105 Di2 drivetrain.

- This ultra-fast climbing bike is aero, weighs in at under 700g, and rides like a dream
- Wireless 105 Di2 delivers ever faster, smoother, and more responsive shifts than ever
- 800 Series OCLV Carbon is intensely light and meticulously crafted for next-level performance
- Aerodynamic tube shaping makes this Émonda ready to roll wicked fast on flats and climbs alike
- The Aeolus Pro 37 wheels are designed for climbing, and were developed alongside Émonda

Geometry Chart:
Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm
Wheel size 700c 700c 700c 700c 700c 700c 700c 700c
A — Seat tube 42.4 45.3 48.3 49.6 52.5 55.3 57.3 59.3
B — Seat tube angle 74.6° 74.6° 74.2° 73.7° 73.3° 73.0° 72.8° 72.5°
C — Head tube length 10 11.1 12.1 13.1 15.1 17.1 19.1 21.1
D — Head angle 72.1° 72.1° 72.8° 73.0° 73.5° 73.8° 73.9° 73.9°
E — Effective top tube 51.2 52.1 53.4 54.3 55.9 57.4 58.6 59.8
G — Bottom bracket drop 7.2 7.2 7.2 7 7 6.8 6.8 6.8
H — Chainstay length 41 41 41 41 41 41.1 41.1 41.2
I — Offset 4.5 4.5 4.5 4.5 4 4 4 4
J — Trail 6.8 6.2 5.8 5.6 5.8 5.7 5.6 5.6
K — Wheelbase 97.2 97.4 97.7 98.1 98.3 99.2 100.1 101
L — Standover 69.2 71.1 73.2 74.4 76.8 79.3 81.1 82.9
M — Frame reach 37.3 37.8 38.3 38.6 39.1 39.6 39.9 40.3
N — Frame stack 50.7 52.1 53.3 54.1 56.3 58.1 60.1 62
Stem length 80 80 90 90 100 110 110 110
Saddle rail height min (w/short mast) 55.5 58.5 61.5 64 67 69 71 73
Saddle rail height max (w/short mast) 61.5 64.5 67.5 70 73 75 77 79
Saddle rail height min (w/tall mast) 59 62 65 67.5 70.5 72.5 74.5 76.5
Saddle rail height max (w/tall mast) 65 68 71 73.5 76.5 78.5 80.5 82.5
Sizes:
SizeRider HeightInseam
47 152 - 158 cm
5'0" - 5'2"
71 - 75 cm
28" - 30"
50 158 - 163 cm
5'2" - 5'4"
74 - 77 cm
29" - 30"
52 163 - 168 cm
5'4" - 5'6"
76 - 79 cm
30" - 31"
54 168 - 174 cm
5'6" - 5'9"
78 - 82 cm
31" - 32"
56 174 - 180 cm
5'9" - 5'11"

81 - 85 cm
32" - 33"

58 180 - 185 cm
5'11" - 6'1"
84 - 87 cm
33" - 34"
60 185 - 190 cm
6'1" - 6'3"
86 - 90 cm
34" - 35"
62 190 - 195 cm
6'3" - 6'5"
89 - 92 cm
35" - 36"

Specs

Fork Emonda SLR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
Rims Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready
Chain Shimano SLX M7100, 12 speed
Frame Ultralight 800 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Tires Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
Brakes Shimano 105 hydraulic disc, flat mount
Rotors Shimano RT70, centerlock, 160mm
Saddle Bontrager Aeolus P2 Elite, 155mm width
Crankset Shimano 105 R7100, 50/34, 165mm length
Seatpost Bontrager carbon seatmast cap, 20mm offset, short length
Shifters Shimano 105 R7170 Di2, 12 speed // Shimano 105 R7170 Di2, 12 speed
Handlebars Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 38cm width, 80mm stem length
Bottom Bracket Praxis, T47 threaded, internal bearing
Rear Derailleur Shimano R7150 Di2, 36T max cog
Front Derailleur Shimano 105 R7150 Di2, braze-on, down swing
Cassette/Freewheel Shimano 105 7100, 11-34, 12 speed

* Subject to change without notice.

Part Numbers

Option UPC MPN
Azure / 47cm / 700c 768682205037 5280576
Axinite Flip/Trek Black / 47cm / 700c 601842958575 5317925
Dark Prismatic/Trek Black / 47cm / 700c 768682688922 5293378
Axinite Flip/Trek Black / 50cm / 700c 601842958568 5317926
Deep Smoke / 47cm / 700c 768682178270 5280560
Axinite Flip/Trek Black / 52cm / 700c 601842958551 5317927
Metallic Red Smoke to Red Carbon Smoke / 47cm / 700c 768682205358 5280592
Axinite Flip/Trek Black / 54cm / 700c 601842958544 5317928
Viper Red / 47cm / 700c 768682178591 5280568
Axinite Flip/Trek Black / 56cm / 700c 601842958537 5317929
Viper Red / 50cm / 700c 768682205136 5280569
Axinite Flip/Trek Black / 58cm / 700c 601842958520 5317930
Metallic Red Smoke to Red Carbon Smoke / 50cm / 700c 768682205310 5280593
Axinite Flip/Trek Black / 60cm / 700c 601842958513 5317931
Deep Smoke / 50cm / 700c 768682178294 5280561
Axinite Flip/Trek Black / 62cm / 700c 601842958506 5317932
Dark Prismatic/Trek Black / 50cm / 700c 768682688625 5293379
Azure / 50cm / 700c 768682204955 5280577
Azure / 52cm / 700c 768682205198 5280578
Dark Prismatic/Trek Black / 52cm / 700c 768682688762 5293380
Deep Smoke / 52cm / 700c 768682178430 5280562
Metallic Red Smoke to Red Carbon Smoke / 52cm / 700c 768682205235 5280594
Viper Red / 52cm / 700c 768682205099 5280570
Viper Red / 54cm / 700c 768682205273 5280571
Metallic Red Smoke to Red Carbon Smoke / 54cm / 700c 768682205334 5280595
Deep Smoke / 54cm / 700c 768682178317 5280563
Dark Prismatic/Trek Black / 54cm / 700c 768682705766 5293381
Azure / 54cm / 700c 768682205051 5280579
Azure / 56cm / 700c 768682204993 5280580
Dark Prismatic/Trek Black / 56cm / 700c 768682705643 5293382
Deep Smoke / 56cm / 700c 768682178539 5280564
Metallic Red Smoke to Red Carbon Smoke / 56cm / 700c 768682205174 5280596
Viper Red / 56cm / 700c 768682205112 5280572
Viper Red / 58cm / 700c 768682205259 5280573
Metallic Red Smoke to Red Carbon Smoke / 58cm / 700c 768682205075 5280597
Deep Smoke / 58cm / 700c 768682178676 5280565
Dark Prismatic/Trek Black / 58cm / 700c 768682705742 5293383
Azure / 58cm / 700c 768682205013 5280581
Azure / 60cm / 700c 768682204979 5280582
Dark Prismatic/Trek Black / 60cm / 700c 768682705827 5293384
Deep Smoke / 60cm / 700c 768682178515 5280566
Metallic Red Smoke to Red Carbon Smoke / 60cm / 700c 768682226452 5280598
Viper Red / 60cm / 700c 768682205211 5280574
Viper Red / 62cm / 700c 768682205297 5280575
Metallic Red Smoke to Red Carbon Smoke / 62cm / 700c 768682226155 5280599
Deep Smoke / 62cm / 700c 768682178577 5280567
Dark Prismatic/Trek Black / 62cm / 700c 768682705841 5293385
Azure / 62cm / 700c 768682205150 5280583
